Trailer Cable 3 Core 3.0mm² 100m Rolls

Free Delivery Australia wide for all orders - Minimum invoice value $50

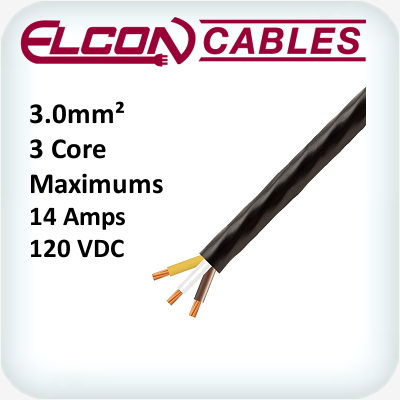

Product: Automotive Trailer 3 Core Cable 3.0mm² 100m Reel, Rated to 14A.

Applications: Conductor for automotive electrical and low voltage DC electronics applications.

General:

Automotive Trailer Cable Dimensions
Part No.	Area mm²	Equiv mm²	Amps +30°C	Insulation Outer mm	Outer Insul mm	Max DC Res @+20°C mΩ/mt	Nom OD mm	Mass Kg/100m
3 Core
ATR37032	0.56	2.0	9A	0.40	0.55	33.76	4.60	3.25
ATR31603	1.84	4.0	28A	0.50	0.60	10.15	2.70	2.1
ATR32603	2.90	5.0	37A	0.50	0.60	6.43	3.40	3.3
4 Core
AS16503	4.59	6.0	51A	0.40	0.55	4.06	3.95	4.9
5 Core
ATR57032	0.56	2.0	7A	0.40	0.60	33.76	5.70	5.05
ATR5903	0.64	2.5	7A	0.50	0.55	29.90	6.30	5.95
ATR51603	1.13	3.0	11A	0.50	0.60	16.82	7.30	8.80
ATR52603	1.84	4.0	15A	0.50	0.60	10.35	8.40	12.70
7 Core
ATF72402	0.75	2.0	4A	0.40	0.60	33.10	4.40x17.50	6.40
ATR77032	0.56	2.0	6A	0.40	0.60	33.76	6.60	6.80
ATR7903	0.64	2.5	6A	0.50	0.60	29.90	7.40	8.17
ATR71603	1.13	3.0	10A	0.50	0.60	16.82	8.40	11.90
ATR72603	1.84	4.0	14A	0.50	1.00	10.35	10.60	19.60

(ATR31603-100)

SKU	ATR31603-100
Brand	Elcon

Help other Red2go Pty Ltd users shop smarter by writing reviews for products you have purchased.

$61.20

$120.00
