10.0-5.0mm SCG Heat Shrink Box Black 10m

Shipping

Free Delivery Australia wide for all orders - Minimum invoice value $50

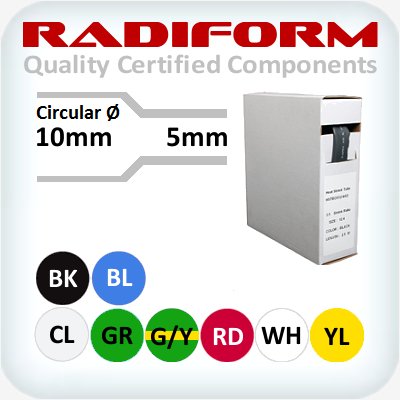

Product: 10mm ID to 5mm ID 10m Dispenser Box
Heat Shrink - SCG Thin Wall

Applications:
Light duty wire harnessing for electrical and electronic applications.Provides electrical insulation and protection for in-line components. Bundles wires and cables. Used as strain relief for electrical wire connection. Bus bar insulation for switchgear. Colour coding for wires, cables, terminals and components.

General:

Shrink ratio 2:1
UL Listed File E523862 (Except Clear)
Flame retarded and self extinguishing (Except Clear)
Rated for up to 600 volts
Resistance to chemical, copper corrosion and fungus
UV stabilised (Except Clear)

Heat Shrink Tube Circular Dimensions
All Dim mm Part Number	As Supplied		After Recovery		Applicable Range
All Dim mm Part Number	Inside Ø	Wall	Inside Ø	Wall	Applicable Range
SCG1.5	2.0 ± 0.2	0.20 ± 0.05	≤ 0.85	0.36 ± 0.10	0.95 ~ 1.4 Ø
SCG2.5	3.0 ± 0.2	0.23 ± 0.05	≤ 1.30	0.45 ± 0.10	1.35 ~ 2.3 Ø
SCG3.5	4.0 ± 0.2	0.23 ± 0.05	≤ 1.80	0.45 ± 0.10	1.85 ~ 3.2 Ø
SCG4	4.7 ± 0.2	0.25 ± 0.05	≤ 2.00	0.45 ± 0.10	2.1 ~ 3.6 Ø
SCG5	5.5 ± 0.2	0.28 ± 0.05	≤ 2.50	0.56 ± 0.10	2.6 ~ 4.5 Ø
SCG7	7.5 ± 0.3	0.30 ± 0.05	≤ 3.50	0.56 ± 0.10	3.7 ~ 6.3 Ø
SCG8	8.5 ± 0.3	0.30 ± 0.08	≤ 4.00	0.56 ± 0.10	4.2 ~ 7.2 Ø
SCG10	10.5 ± 0.3	0.30 ± 0.08	≤ 4.50	0.56 ± 0.10	5.2 ~ 9.0 Ø
SCG13	13.5 ± 0.3	0.35 ± 0.08	≤ 6.50	0.56 ± 0.10	6.7 ~ 12 Ø
SCG14	14.5 ± 0.3	0.35 ± 0.10	≤ 7.00	0.70 ± 0.10	7.3 ~ 13 Ø
SCG16	16.5 ± 0.4	0.32 ± 0.10	≤ 8.00	0.70 ± 0.10	8.3 ~ 15 Ø
SCG18	19.0 ± 0.5	0.35 ± 0.10	≤ 9.00	0.70 ± 0.10	9.3 ~ 17 Ø
SCG20	22.0 ± 0.5	0.40 ± 0.10	≤ 10.00	0.83 ± 0.10	10.4 ~ 19 Ø
SCG25	26.0 ± 0.5	0.45 ± 0.12	≤ 12.50	0.90 ± 0.15	12.8 ~ 24 Ø
SCG30	31.5 ± 1.0	0.45 ± 0.12	≤ 15.00	1.00 ± 0.15	16 ~ 29 Ø
SCG40	41.5 ± 1.0	0.50 ± 0.12	≤ 20.00	1.00 ± 0.15	21 ~ 39 Ø
SCG50	50.0 ± 3.0	0.50 ± 0.15	≤ 25.00	1.10 ± 0.20	26 ~ 49 Ø

Heat Shrink Tube Lay Flat Dimensions
Part Number	Lay Flat ID	Part Number	Lay Flat ID	Part Number	Lay Flat ID
SCG5	8mm	SCG16	25mm	SCG40	63mm
SCG7	11mm	SCG18	28mm	SCG50	79mm
SCG10	16mm	SCG20	31mm	SCG76	119mm
SCG13	20mm	SCG25	39mm	SCG100	157mm
SCG14	22mm	SCG30	47mm	SCG120	187mm

Heat Shrink Part Numbers for Copper Lug and Link Barrel Insulation
Lug or Link to Suit Cable Size	Heat Shrink Part Number
1.5mm²	SCG3.5
2.5mm²	SCG5
4mm²	SCG7
6mm²	SCG7
10mm²	SCG10
16mm²	SCG10
25mm²	SCG13
35mm²	SCG20
50mm²	SCG20
70mm²	SCG20
95mm²	SCG20
120mm²	SCG25
150mm²	SCG25
185mm²	SCG25
240mm²	SCG40
300mm²	SCG40
400mm²	SCG40
500mm²	SCG40
630mm²	SCG50

Heat Shrink Part Numbers for Bus Bar Insulation
Width	Thickness
Width	3.2mm	4.8mm	6.4mm	9.5mm	12.7mm
12mm	SCG13	SCG13
19mm	SCG20	SCG20	SCG20	SCG20	SCG20
25mm	SCG25	SCG25	SCG25
38mm	SCG40	SCG40	SCG40	SCG40
51mm	SCG50	SCG50	SCG50	SCG50	SCG50
76mm	SCG76	SCG76	SCG76	SCG76	SCG76
102mm	SCG100	SCG100	SCG100	SCG100	SCG100
125mm	SCG100	SCG100	SCG100	SCG100	SCG100

(SCG10Box)

SCG All Colours (Not Applicable For Clear)		Testing Method	Requirement
Physical	Tensile Strength	GB/T1040	≥10.4
	Elongation %	GB/T1040	≥200
	Tensile Strength After Aging MPa	UL224 158°C x 168hrs	≥7.3
	Elongation % After Aging	UL224 158°C x 168hrs	100
	Heat Resistance	UL224 250°C x 4hrs	No Viscidity No Cracking
	Cold Blend	UL224 -30°C x 1hr	No Cracking
Electrical	Dielectric Withstand	UL224	1500V x 1min Without Breakdown
	Dielectric Strength kV/mm	GB/T1408	≥15
	Volume Resistance Ohm/cm	GB/T1410	≥1x10¹⁴
Chemical	Anti Corrosion	UL224 158°C x 168hrs	Pass
	Copper Stability	UL224 158°C x 168hrs	Pass
	Flamability	VW1	All Colours Except Clear
