Heavy Duty Gland for NC08 Tubing 12mm Thread
CGHD-NC08-M12
$0.94
In Stock
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock
Heavy Duty Glands for Corrugated Conduit
- UL Approved Nylon PA66
- UL94V-2 Flammability Rating
- IP65 Rated
- Temperature Range -40°C to +100°C
- RoHS Compiant

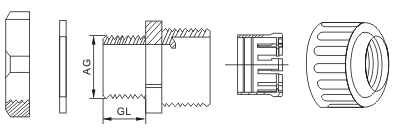

| Part No. | AG | GL | Suits Nylon Conduit |
| CGHD-NC08-M12 | 12mm Thread Ø |
9mm Thread Depth |
 |
| CGHD-NC12-M16 | 16mm Thread Ø |
15mm Thread Depth |
 |
| CGHD-NC16-M16 | 16mm Thread Ø |
15mm Thread Depth |
 |
| CGHD-NC16-M20 | 20mm Thread Ø |
12.5mm Thread Depth |
|
| CGHD-NC20-M20 | 20mm Thread Ø |
12.5mm Thread Depth |
 |
| CGHD-NC20-M25 | 25mm Thread Ø |
13mm Thread Depth |
|
| CGHD-NC25-M25 | 25mm Thread Ø |
13mm Thread Depth |
 |
| CGHD-NC32-M32 | 32mm Thread Ø |
14mm Thread Depth |
 |
(CGHD)
| Property | Specification |
| Material | UL Approved Nylon 6/6 |
| Continuous Operating Temperature | -40°C to +100°C |
| Peak Operating Temperature | 120°C |
| Flammability | UL94V-2 |
| RoHS | Compliant |
| Chemical Resistance | ||
| Medium | Resistant | Non-restistant |
| Fuels - Aliphatic Hydrocarbons Aromatic Hydrocarbons |
||
| O | ||
| O | ||
| Automotive Fluids - Oils / Greases Brake / Hydraulic |
||
| O | ||
| O | ||
| Organic Solvents - Esters Ethers Ketones |
||
| O | ||
| O | ||
| O | ||
| Acids - Organic Inorganic |
||
| O | ||
| O | ||
| SKU | CGHD |
| Brand | Radiform |
