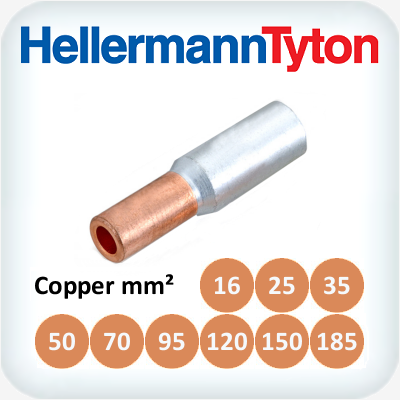

Bi Metal Link to suit 240mm² Aluminium to 25mm² Copper
BMK240-25
$75.58
In Stock
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock
Bi Metal Link to suit Aluminium 240mm² to Copper 16, 25, 35, 50, 70, 95, 120, 150 or 185mm²
Use Australian standard compression tooling only
| Part Number | Overall Length | Al Hex Die AF | Cu Hex Die AF |
|---|---|---|---|
| BMK240-16 | 130mm | 22.0mm | 6.3mm |
| BMK240-25 | 130mm | 22.0mm | 7.7mm |
| BMK240-35 | 130mm | 22.0mm | 9.2mm |
| BMK240-50 | 130mm | 22.0mm | 10.4mm |
| BMK240-70 | 130mm | 22.0mm | 11.5mm |
| BMK240-95 | 130mm | 28.4mm | 14.2mm |
| BMK240-120 | 130mm | 28.4mm | 16.5mm |
| BMK240-150 | 130mm | 28.4mm | 18.3mm |
| BMK240-185 | 130mm | 28.4mm | 20.0mm |
(BMK240)
| SKU | BMK240 |
| Brand | HellermannTyton |
