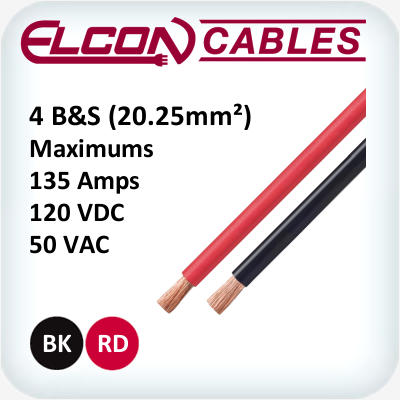

Product: Automotive Single Core Battery and Starter Cable 4 AWG 30m Reel, Rated to 135A.
Applications: Conductor for high current automotive electrical and DC electronics applications.
General:
- 99.9% Oxygen Free High Conductivity (OFHC) Copper
- Plain annealed copper conductors (PCW) to AS/NZS1125
- Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
- Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
- UV Stabilised
- ROHS Compliant
Automotive Single Core Dimensions | |||||||
Part No. |
Strands |
Area |
Amps |
Insulation Wall mm | Max DC Res @+20°C mΩ/mt |
Nom OD mm |
Mass Kg/100m |
ABS8 | 112/0.30 | 7.92 | 74A | 0.9 | 2.36 | 5.40 | 8.9 |
ABS6 | 189/0.30 | 13.36 | 103A | 1.1 | 1.40 | 6.90 | 14.8 |
ABS4 | 287/0.30 | 20.25 | 135A | 1.1 | 0.92 | 8.00 | 21.6 |
ABS3 | 364/0.30 | 25.70 | 170A | 1.6 | 0.72 | 9.80 | 28.9 |
ABS2 | 455/0.30 | 32.15 | 190A | 1.7 | 0.58 | 10.70 | 35.7 |
ABS1 | 560/0.30 | 39.55 | 210A | 1.7 | 0.47 | 11.50 | 43.0 |
ABS0 | 700/0.30 | 49.45 | 246A | 1.7 | 0.38 | 12.50 | 52.6 |
ABS00 | 910/0.30 | 64.30 | 292A | 1.7 | 0.29 | 13.50 | 66.9 |
ABS000 | 1204/0.30 | 85.00 | 335A | 2.0 | 0.22 | 16.00 | 88.9 |
Also available to order in 100m reels
Email Steve or telephone 1800 733 246 Red2Go
(ABS4)
- 99.9% Oxygen Free High Conductivity (OFHC) Copper
- Plain annealed copper conductors (PCW) to AS/NZS1125
- Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
- Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
- UV Stabilised
- ROHS Compliant
SKU | ABS4 |
Brand | Elcon |
