Automotive Twin 3.0mm² 30m Rolls
ATS21603
$39.98
In Stock
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock

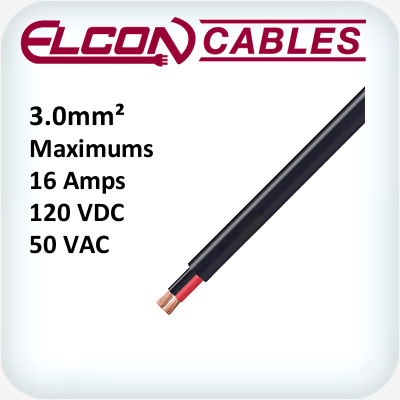

Product: Automotive Twin Core Cable 3.0mm² 30m Reel, Rated to 16A.
Applications: Conductor for automotive electrical, radio DC power supply, trailer wiring and LV DC garden lighting applications.
General:
- 99.9% Oxygen Free High Conductivity (OFHC) Copper
- Plain annealed copper conductors (PCW) to AS/NZS1125
- Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
- Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
- UV Stabilised
- RoHS Compliant
| Automotive Twin Core Dimensions | ||||||||
|
Part No. |
Strands |
Area |
Equiv mm² |
Amps |
Insulation Wall mm |
Max DC Res @+20°C mΩ/mt |
Nom OD mm |
Mass Kg/100m |
| ATS21603 | 16/0.30 | 1.13 | 3.0 | 16A | 0.45 | 16.50 | 3.40x6.8 | 4.09 |
| ATS22603 | 26/0.30 | 1.84 | 4.0 | 22A | 0.55 | 10.15 | 3.90x6.6 | 5.70 |
| ATS24103 | 41/0.30 | 2.90 | 5.0 | 29A | 0.65 | 6.43 | 4.60x8.0 | 8.40 |
| ATS26503 | 65/0.30 | 4.59 | 6.0 | 40A | 0.75 | 4.06 | 5.50x9.3 | 12.56 |
| ATS211203 | 112/0.30 | 7.92 | 8 B&S | 74A | 1.20 | 2.40 | 8.0x13.4 | 14.08 |
| ATS218903 | 189/0.30 | 13.36 | 6 B&S | 100A | 1.20 | 1.40 | 9.4x16.2 | 37.50 |
(ATS21603)
- 99.9% Oxygen Free High Conductivity (OFHC) Copper
- Plain annealed copper conductors (PCW) to AS/NZS1125
- Insulation Temperature Rated to V90HT (+90°C) / AS3808:2000
- Voltage Rated to 120VDC or 50VAC AS/NZS 3000:2000
- UV Stabilised
- RoHS Compliant
| SKU | ATS21603 |
| Brand | Elcon |
