Anderson SB50 Grey 50A 6AWG Contacts
6319
$9.08
In Stock
Notify me when back in stock
Anderson SB50 Plug Kit 2 Way Grey 50A 6AWG Contacts
Applications
DC power connections, battery chargers and jump/boost starters
Features
- UL Rated for hot plugging up to 50 Amps
- UL Rated to 600V
- Genderless (flip 180° to insert)
- Keyed housings prevent incorrect mating

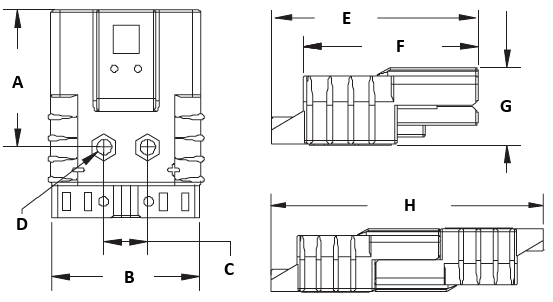

| Anderson SB50 - All Dimensions mm | |||||||
| A | B | C | D | E | F | G | H |
| 46.0 | 49.5 | 14.6 | 5.1 | 69.6 | 58.9 | 26.3 | 112.2 |
(6319)
| Anderson Power Products 6319 | |
| Property | Unit |
| UL Current Rating | 120A (6AWG) |
| UL Voltage Rating AC or DC | 600V |
| Contact Wire To | 6AWG |
| Contact Wire To (metric) | 13.3mm² |
| Maximum Wire Insulation | 11.2mm Ø |
| Average Contact Resistance (milliohms) | 0.2 |
| Contact Retention Force | 50 lbf |
| No Load Contact/Disconnect Cycles | ≥10,000 |
| Hot Plug Contact/Disconnect Cycles | ≥250 (50A 120V) |
| Operating Temperature Range | - 20°C to +105°C |
| Flammability - Housing Material | UL94 V-0 |
| SKU | 6319 |
| Brand | Anderson Power Products |
