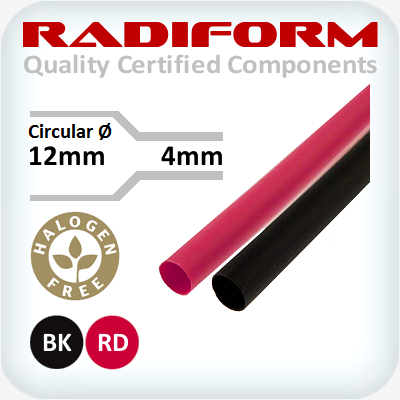

![12-4mm Glue Lined Heat Shrink [Black] 1.2m](/assets/full/RDWHF12.png?20220405104152)
12-4mm Glue Lined Heat Shrink [Black] 1.2m
RDWHF12-BK
$4.78
In Stock
Shipping
Free Delivery Australia wide for all orders - Minimum invoice value $50
Notify me when back in stock
Product: 12mm ID to 4mm ID 1.2m Lengths
Heat Shrink – RDWHF Dual Wall Tube Halogen Free
Applications:
Provides permanent waterproof barrier & environmental seal for electrical connections
Used as an alternative to moulded parts and cable breakouts. High shrink ratio enables insulation of cables with connectors of various sizes.Suitable for use in telecommunication, industrial equipment, automotive and marine applications.
General:
- Shrink ratio 3:1
- Flame retarded and self extinguishing
- Dielectric strength 15kV/mm
- Resistance to chemical, copper corrosion and fungus
- Operating temperature range -55°C to +85°C
- RoHS compliance
| Heat Shrink Tube Circular Dimensions | |||||
| All Dim mm Part Number |
As Supplied | After Recovery | Applicable Range |
||
| Inside Ø | Inside Ø | Wall | |||
| RDWHF6 | 6.0 | ≤ 2.00 | 1.10 ± 0.15 | 1.8 ~ 5.9 Ø | |
| RDWHF9 | 9.0 | ≤ 3.00 | 1.30 ± 0.20 | 3.0 ~ 8.9 Ø | |
| RDWHF12 | 12.0 | ≤ 4.00 | 1.30 ± 0.20 | 4.0 ~ 11.7 Ø | |
| RDWHF18 | 18.0 | ≤ 6.00 | 1.70 ± 0.20 | 6.0 ~ 17.7 Ø | |
| RDWHF24 | 24.0 | ≤ 8.00 | 2.50 ± 0.25 | 8.0 ~ 23.5 Ø | |
| Heat Shrink Tube Lay Flat Dimensions | |||||
| Part Number | Lay Flat ID | ||||
| RDWHF6 | 10mm | ||||
| RDWHF9 | 15mm | ||||
| RDWHF12 | 18mm | ||||
| RDWHF18 | 28mm | ||||
| RDWHF24 | 37mm | ||||
| Heat Shrink Part Numbers for Copper Lug and Link Barrel Insulation | |
| Lug or Link to Suit Cable Size | Heat Shrink Part Number |
| 1.5mm² | RDWHF6 |
| 2.5mm² | RDWHF6 |
| 4mm² | RDWHF6 |
| 6mm² | RDWHF9 |
| 10mm² | RDWHF9 |
| 16mm² | RDWHF12 |
| 25mm² | RDWHF12 |
| 35mm² | RDWHF18 |
| 50mm² | RDWHF18 |
| 70mm² | RDWHF18 |
| 95mm² | RDWHF24 |
| 120mm² | RDWHF24 |
| 150mm² | RDWHF24 |
(RDWHF12)
| RDWHF | Testing Method | Requirement | |
| Physical | Tensile Strength | ASTM D 2671 | ≥10.4 |
| Elongation % | ASTM D 2671 | ≥300 | |
| Tensile Strength After Aging MPa |
UL224 158°C x 168hrs |
≥7.3 | |
| Elongation % After Aging |
UL224 158°C x 168hrs |
≥200 | |
| Electrical | Dielectric Strength kV/mm | IEC 60243 | ≥15 |
| Volume Resistance Ohm/cm | IEC 60093 | ≥1x1014 | |
| Adhesive | Water Absorption | ASTM D 570 | 95°C |
| Softening Point | ASTM DE 28 | Pass | |
| Strength of Pearing (PE) | ASTM D 1000 | 120N/25mm | |
| Strength of Pearing | ASTM D 1000 | 80N/25mm | |
| SKU | RDWHF12 |
| Brand | Radiform |
